Computer Memory

Introduction

This lesson is optional. It does provide information that is useful in the Class vs Object lesson. If you are already familiar with the differences between compilers and interpreters, you may skip the lesson. If you skip this lesson you can always come back to it later.

Memory

An executable program, one that has already been compiled, is stored in memory. Normally, it is stored in a disk file in a shorten form. The shorten form will only include the static parts of the program, the machine code, static data such as strings and constants, along with data that the program will use during execution that can be determined and set by the compiler.

Each unit of memory has an address used to locate it. In most computers, a unit of memory is a byte which is itself comprised of 8 bits. There are some computers that use a word as its unit of memory. A word is comprised of a number of bytes. In the old days, the size of a word could vary from computer to computer. The size of a word is usually based on the number of data lines the computer data bus had for transporting data. Older PCs had a 16 bit data bus and its word size was 2 bytes. Today, the standards are 32 bit and 64 bit data buses where the word size can range from 4 bytes to 8 bytes.

There have been other computers that use unique word sizes. The Harris H-Series had a word size of 24 bits or 3 bytes. A CDC series computer had a word size of 60 bits or 10 6 bit bytes. The CDC computers were used before 32 bit data buses were common.

Program Layout

When a compiled program is about to be executed, it is first copied from disk into memory. More memory will be assigned to the program than was needed to store it in a disk file. That extra memory is used for dynamic objects and call stacks. The compiled program, also called the executable, references memory starting at zero. When it is placed in memory, its first memory address will be a random value that is not zero. To get around this problem, an executable will be assigned virtual memory. Virtual memory is stored in real memory with the addresses in virtual memory starting at zero. The program address its virtual memory space and the operating system will translate virtual memory addresses into real memory addresses.

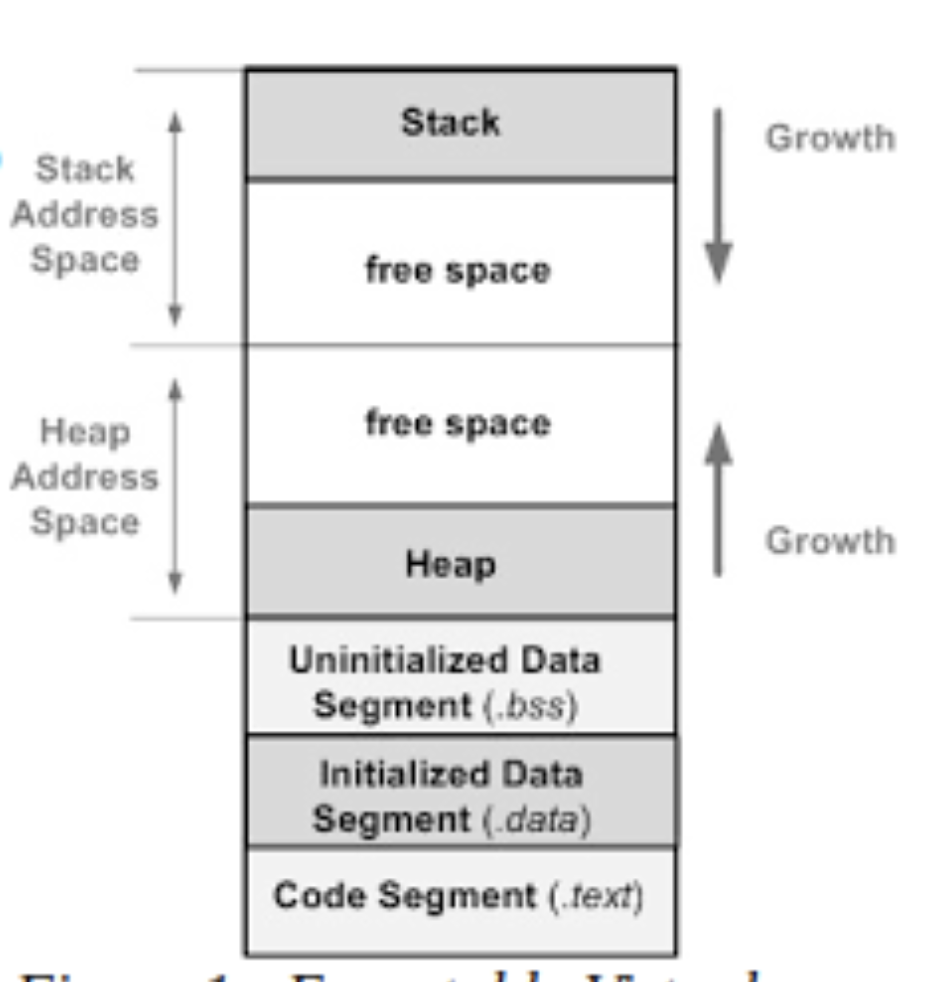

Looking at Figure 1, to the right, the first set of addresses store the machine code of the program. This is referred to as the Code Segment. The next two sections contain data, both initialized and uninitialized. The order of these two data segments can be reversed or even mixed. These segments contain the data that does not change size: constants, strings, predefined global variables.

Figure 1: Program Execution Memory

The rest of the virtual memory is used to store dynamic data and call stacks. This is data that is created while the program is running. This segment is divided into three parts: the Heap at one end, the Stack at the other end, and free or unused memory in the middle.

The Stack is used to store variables and objects used that are not created using the new keyword. It also stores the call stack whenever execution jumps to a function or method. The call stack contains the return value from the method, the parameters passed to the method, and other information needed by the computer to jump to the correct machine code and return when the method is done. All variables declared in the scope of the meyhod are also pushed onto the stack. When execution leaves a scope, all the variables declared in that scope are popped off the Stack. When the function exits, the return value is placed in the call stack. All remaining variables used by the function are popped off the Stack. The caller of the function can then access the return value before it too can be popped off the stack.

The Heap is used to used to store dynamically created variables and objects. In Java, any object created with the new keyword is a dynamic variable. Memory from the Heap is allocated starting with the beginning of the Heap. If there are no free or unused chunk of memory within the Heap that is large enough to contain the variable, the Heap will grow and allocate memory that was from the free space.

The Stack is a memory where all the memory is used. In other words, there are no chunks of unused memory in the Stack. The Stack grows, increases in size, as needed and it shrinks, decreases in size, as data is no longer used. The Heap, on the other hand, cannot grow and shrink like the Stack because dynamic variables can still exist when the function that created them returns. As dynamic variables are released, the memory used to store them is marked as available. This results in holes in the Heap where dynamic memory has been released and no new dynamic variables have been created that will fit in the available space.

There is a potential problem with using this Stack/Heap model. Each program is allocated a fixed amount of memory to use for the Stack and Heap. If this memory runs out, in other words, the Stack meets the Heap, the program will crash. The actual size allocated for the Stack and Heap can be changed though not when the program is executing. Sometimes, the Stack/Heap space can be defined as a command line parameter when the program is run. Sometimes, it can be specified when compiling the program, and at other times, with changes to the operating system configuration. Regardless of how Stack/Heap space can be changed, if your program does not have enough, it will crash and lose all the data that is still in memory.
